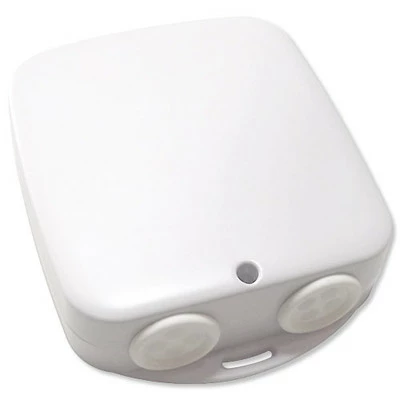

Aeotec Z-Wave Plus Heavy-Duty Smart Energy Appliance Switch, Gen5

Control A Heavy-Duty Wired Device

Remotely control a heavy-duty wired device and save energy with the Aeotec Z-Wave Heavy Duty Smart Energy Appliance Switch. This high voltage wired switch adds remote On/Off control to a connected heavy-duty appliance using Z-Wave wireless communications when connected to a compatible Z-Wave hub. Manual On/Off operation is also possible by pressing the corresponding button covered by the protective shield. The switch can also report energy usage in Watts or KWh to a Z-Wave controller. Energy consumption will be displayed at the controller’s user interface.

• Enables Z-Wave On/Off control for a heavy-duty wired load
• Supports heavy loads up to 40A/9600W/5HP
• Responds to On/Off commands from a Z-Wave controller
• Reports energy usage in Watts or KWh
• Repeats Z-Wave commands to their destinations

The Z-Wave Heavy Duty Smart Energy Appliance Switch mounts to a wall and supports loads up to 9600 Watts, resistor loads up to 40 Amps, and AC motor loads up to 5HP. It’s rated for 240VAC, 50/60Hz. In addition to controlling the wired-in load, the switch serves as a Z-Wave repeater, relaying Z-Wave commands to their destinations if the destination is out of reach from the original transmitter.

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the “Next Gen” Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Heavy Duty Smart Switch Gen5
• 8 AWG Wire Terminal
• 10 AWG Wire Terminal
• Screws
• Instruction Manual

NOTE: Must be enrolled into a Z-Wave network controller (sold separately).
