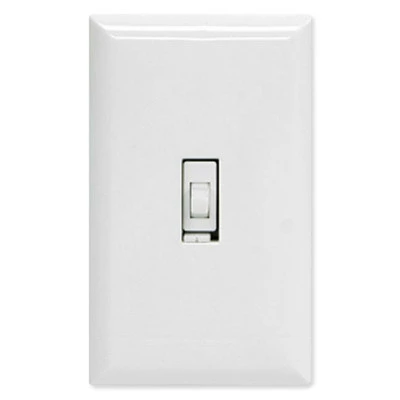

Jasco Z-Wave Plus In-Wall Smart Toggle Dimmer Switch, Gen5

Control Wired Light Fixtures & Devices With Z-Wave

The Jasco Z-Wave Plus In-Wall Smart Toggle Dimmer Switch adds Z-Wave remote and local On/Off/Dim/Brighten control for a wired light or appliance. The dimmer toggle switch can be installed in single or multi-way wire applications and included in multiple automation scenes. A blue LED indicator leads you to the switch in the dark.

• Works with dimmable incandescent, LED, CFL, and halogen lighting
• Supports loads up to 960W, incandescent, 1/2 HP, or 1800W(15A) resistive
• Range up to 150 ft (line of sight) between the closest Z-wave receiver and wireless controller
• Suitable for single-pole or multi-pole applications
• Can be included in multiple automated groups or scenes
• Uses a standard decorative-size wallplate (sold separately)

The Jasco Z-Wave Plus In-Wall Smart Toggle Dimmer includes QuickFit and SimpleWire features:

QuickFit switches are 20% smaller than older switch models with no break-off tabs to remove. This more compact design makes them ideal for older-style switch boxes, multi-gang configurations, or any other application with limited space.

SimpleWire features include auto-detecting line/load terminals, which simplifies installation by detecting line and load wires and configuring the dimmer accordingly.

Installation Details

The Z-Wave Plus In-Wall Smart Toggle Dimmer works with incandescent, LED, CFL, and halogen lighting, as well as any on/off resistive load up to 1800W and motor loads to 1/2 HP. The switch supports single-pole or multi-pole applications, using up to four Jasco model add-on switches in 3, 4, 5 or 6-way wiring configurations. This model can also be included in multiple zones/scenes. The switch requires standard screw terminal installation with wiring connections for Line (Hot), Load, Neutral, and Ground. Multi-pole installation also requires a neutral wire.

Notes

• For indoor use only.
• A neutral wire is required for installation.
• Wallplate not included. Uses standard single-gang wallplate.
• The fixture controlled by the switch must not exceed 960 watts (Incandescent); 1800W (15A) Resistive or 1/2 HP Motor.
• The switch is designed only for use with permanently installed fixtures.
