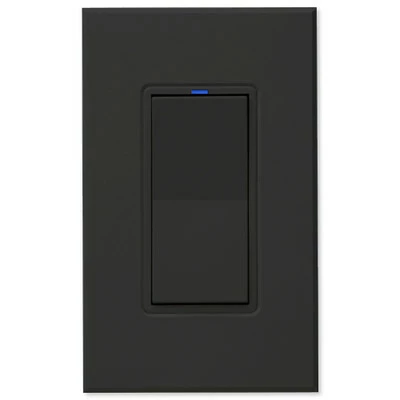

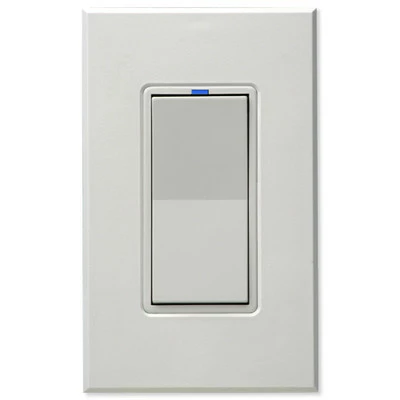

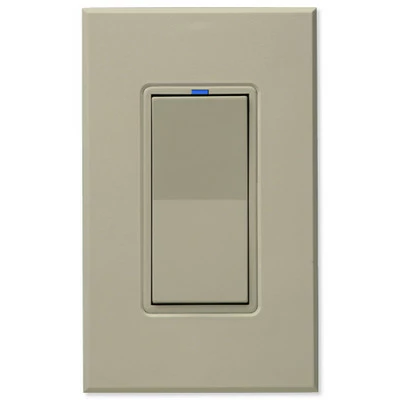

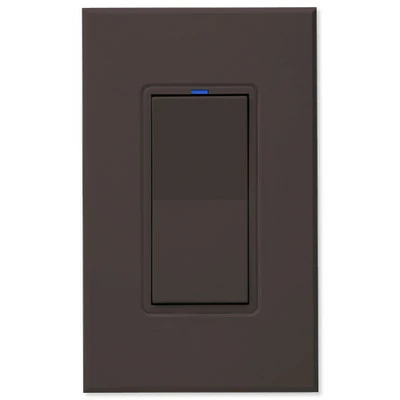

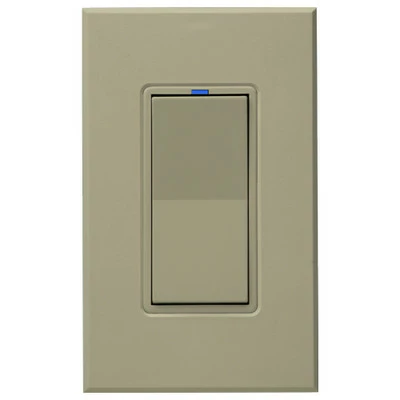

PCS PulseWorx UPB Wall Switch-Relay/Dimmer

UPB Control for Wired LEDs

Replace a standard LED light switch with a UPB controlled dimmer switch! The PCS PulseWorx Wall Switch Relay/Dimmer (15A) replaces an existing switch to deliver both remote and local On/Off/Dim control for connected LED loads. The Relay/Dimmer can be configured to connect up to two PulseWorx UPB Remote Wall Switches of any type to remotely control the Relay/Dimmer.

• Replaces an existing wall switch to control dimmable LED fixtures (up to 15 Amps)
• Built-in Relay provides 0-10V LED dimming when used with receiving module
• Can store up to 16 scenes and connect with up to 5 UPB remote switches
• Adjustable LED brightness and backlit switch for night time use
• Mounts in a single or multi-gang box

Out of the box, the Relay/Dimmer only controls LED fixtures when used with the RM-0-10V Receiving Module (sold separately). The switch can be reconfigured to transmit and receive remote UPB commands with the UPstart configuration program or similar UPB Setup Tool.

Once the Relay/Dimmer is configured to work with other PulseWorx devices, it can be programmed into UPB networks and included into two scenes. The Wall Switch Relay/Dimmer features a low-profile, decorator design to attractively blend in with your home’s decor. It mounts in a single- or multi-gang box and supports three-way control when used in conjunction with an additional PulseWorx UPB switch (sold separately).

Contents

• Wall Switch-Relay/Dimmer

NOTE: Neutral wire required. Requires the RM-0-10V, sold separately, to operate LED fixtures. Requires UPstart configuration in order to include into UPB networks.

PulseWorx Products Utilize UPB Technology

PulseWorx is a complete Lighting Control System that uses existing powerlines to give residential customers one-touch control over their home’s lighting. PulseWorx products are designed to work within the current framework that already exists in the home, no new wires are required. PulseWorx products utilize UPB technology, providing the most reliable powerline controls available today.
