Zipato Z-Wave Plus Smart Energy Plug-In Switch Module, Gen5

Z-Wave Plug-In Module with Built-In Energy Monitor

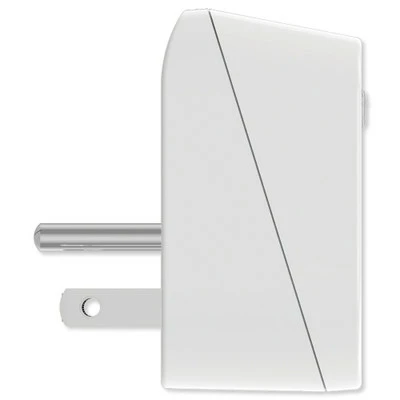

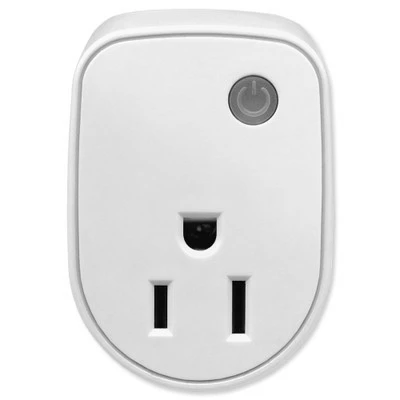

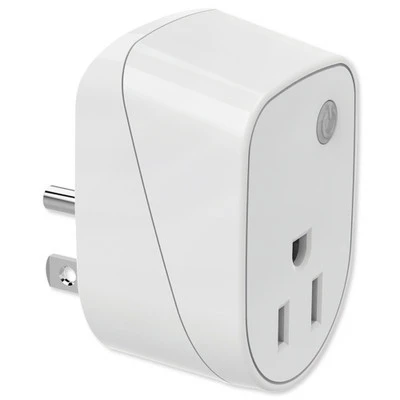

Add Z-Wave On/Off remote control to any plug-in light or appliance up to 13 Amps, and monitor its energy usage, with the Zipato Z-Wave Plus Smart Energy Plug-In Switch Module. This small DIY module simply plugs into a power outlet, and your device plugs into the module. The module has a built-in On/Off button to provide local control in addition to Z-Wave remote control.

• Provides Z-Wave remote control and local control via pushbutton
• Supports any plug-in light or appliance up to 13 Amps
• “Z-Wave Plus” certified for wide compatibility
• Reports energy info (instance wattage, accumulated power, overload, etc.)
• Multi-color LED provides visual indication of energy use
• Serves as a wireless repeater for other Z-Wave devices

The Z-Wave Smart Energy Plug-In Switch Module detects and reports voltage, current, power factor, instance wattage (1560W/UL/TW/JP), accumulated power, and overload current (14.5A) of your connected light or appliance. It auto-reports wattage when variation exceeds 5 percent. When overload is detected, the module automatically disables, its On/Off button locks out, and its LED indicator flashes quickly. Unplugging and reconnecting the module will reset its overload condition to normal status.

During normal operation, the module’s multi-color LED provides visual indication of the connected device’s energy consumption:

• Blue: 59W and below
• Cyan: 60W to 119W
• Green: 120W to 399W
• Orange: 400W to 799W
• Pink: 800W to 1199W
• Red: 1200W and above

Z-Wave Plus Certification

Z-Wave Plus is an upgraded certification program to help you identify products that take advantage of the “Next Gen” Z-Wave hardware platform, also known as 500 Series or Gen5 Z-Wave. Z-Wave Plus certified solutions feature a selected set of extended features and capabilities that enhance your experience with faster and easier installation and setup. Z-Wave Plus advancements also provide longer battery life, faster operation, better wireless range and improved noise immunity.

Contents

• Smart Energy Plug-In Switch Module
• Quick Installation Guide

NOTE: Requires a Z-Wave network controller, sold separately. For indoor use only.

Security & Automation For Every Home

Zipato is a cloud-based home automation and security system designed to make homes safe, comfortable and energy efficient. Compatible with a variety of wired and wireless automation protocols, Zipato supports flexible installation, customization, and DIY expandability. Control Zipato locally or over the Internet for complete home control and peace of mind!
